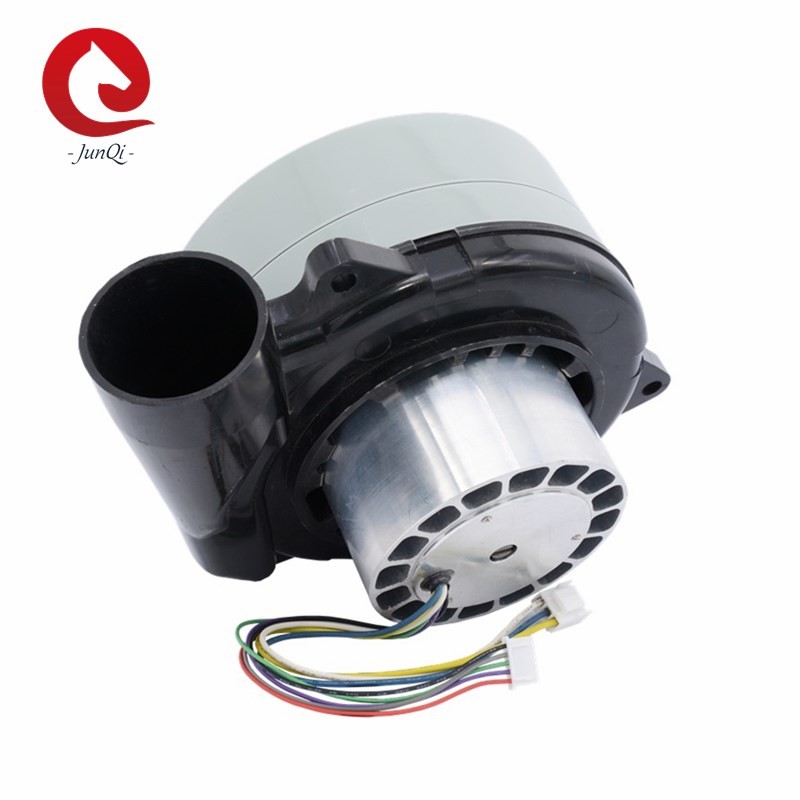

145mm Belüftung schwanzloses elektrisches Seitendes kanal-12.5kpa Gebläse-Hochdruck-Luftstrom-56CFM

145mm Belüftung schwanzloses elektrisches Seitendes kanal-12.5kpa Gebläse-Hochdruck-Luftstrom-56CFM

  • 145mm Belüftung schwanzloses elektrisches Seitendes kanal-12.5kpa Gebläse-Hochdruck-Luftstrom-56CFM
  • 145mm Belüftung schwanzloses elektrisches Seitendes kanal-12.5kpa Gebläse-Hochdruck-Luftstrom-56CFM
  • 145mm Belüftung schwanzloses elektrisches Seitendes kanal-12.5kpa Gebläse-Hochdruck-Luftstrom-56CFM
  • 145mm Belüftung schwanzloses elektrisches Seitendes kanal-12.5kpa Gebläse-Hochdruck-Luftstrom-56CFM
145mm Belüftung schwanzloses elektrisches Seitendes kanal-12.5kpa Gebläse-Hochdruck-Luftstrom-56CFM
Produktdetails:
Herkunftsort: China
Markenname: junqi
Zertifizierung: CE,Rohs
Modellnummer: OWB-1412-130
Zahlung und Versand AGB:
Min Bestellmenge: 1 Satz
Preis: Negotiable
Verpackung Informationen: Carton+packing schäumt
Lieferzeit: 5-30days
Zahlungsbedingungen: T/T, L/C
Versorgungsmaterial-Fähigkeit: 1000 PC pro Tag
Kontakt
Ausführliche Produkt-Beschreibung
Produkt-Name: BLDC-Gebläse Nennspannung: 48VDC
Nennstrom: 6.5A Motordrehzahl (offen): 13000RPM
Motordrehzahl (geschlossen): 16000rpm Antriebsmotor: schwanzloser DC-Motor mit 3 Phasen
Lager: NMB-Kugellager Luftdruck: 14.5KPa
Geräusche: 85dBA Nettogewicht: 1500g
IP-Grad: IP 54 Nutzungsdauer: 10000 Stunden
Markieren:

145mm elektrisches Seitenkanalgebläse

,

Hochdruck-Gebläse DC-12.5kpa

,

elektrisches Seitengebläse des kanals 56CFM



OWB1412 Series Brushless DC  air blower



48V DC air vacuum blower for vacuum cleaner,Air purifier,Hand dryer,
Air bubble machine , Ventilating device







1: Brushless DC Air Blower Features:
1: High speed, specialized high-speed ball bearing(NMB) offering long service life and lower noise

2: High pressure and airflow output by compact size design

3: High efficiency, much more efficient than brush motor blower

4: High reliability, specialized controller make the working more reliable

5: High intelligent, PWM speed regulation, positive inversion, PG signal feedback, intelligent controlling


2: Products Parameters

Model OWB1412-140 OWB1412-130
Rated Voltage 48VDC 48VDC
Rated current(open) 8A 6.5A
Air flow(open) 84M3/H 80M3/H
Motor Speed(open) 14000 RPM 13000RPM

Rated current(closed) 5.6A 3.7A
Air pressure(closed) 14.5kPa 12.5kPa
Motor Speed(closed) 16900 RPM 16000RPM

Motor pole 4 4
Phase Resistance 0.9 Ohm 1.0 Ohm
Noise 88 dBA 85 dBA
Ball Bearing NMB High-speed ball bearing
Driving motor 3 phase brushless DC motor
Hall sensor angle 120°
RPM-Pulse 1 Hz=30rpm/min
Winding type Delta
Winding withstand Voltage 500VDC (1 minute )
Insulation Class Class F
Blower weight 1500g
IP grade IP54
Operation temperature -20℃~ 50℃
Service life (under 40℃) 10000 hours











































3: Products performance


OWB1412 brushless DC vacuum blower commutating period

145mm Belüftung schwanzloses elektrisches Seitendes kanal-12.5kpa Gebläse-Hochdruck-Luftstrom-56CFM 0



OWB1412 brushless DC blower Performance curves

145mm Belüftung schwanzloses elektrisches Seitendes kanal-12.5kpa Gebläse-Hochdruck-Luftstrom-56CFM 1

145mm Belüftung schwanzloses elektrisches Seitendes kanal-12.5kpa Gebläse-Hochdruck-Luftstrom-56CFM 2

145mm Belüftung schwanzloses elektrisches Seitendes kanal-12.5kpa Gebläse-Hochdruck-Luftstrom-56CFM 3



4: Overall dimensions


145mm Belüftung schwanzloses elektrisches Seitendes kanal-12.5kpa Gebläse-Hochdruck-Luftstrom-56CFM 4


5: Wiring diagram
145mm Belüftung schwanzloses elektrisches Seitendes kanal-12.5kpa Gebläse-Hochdruck-Luftstrom-56CFM 5

Pin 4 Red +5V
Pin 5 Purple Hall A
Pin 6 Green Hall B
Pin 7 Grey Hall C
Pin 8 Black GND
Pin 1 Yellow Motor phase A
Pin 2 Blue Motor phase B
Pin 3 White Motor phase C


6: Attentions
1: Do not working under the max air pressure, the air flow is too small at max air pressure, and it's not safe for using.
2: Add a filter attach to the intake makes the blower bearing longer service life.
3: The correct rotation direction is CCW
4: Do not use the blower in High temperature ,high humidity, high magnetic fields
5: Please use suitable power supply for the blower.




7: Brushless DC Air Blower Applications:
1: Buffer air cushion
2: Intelligent closestool
3: Electric-Drive phlegm-Sucker
4: Central ventilation system
5:Air purifier
6:Hand dryer
7: Air bubble machine
8: Ventilating device
9: Vacuum cleaner
10: breathing machine
11: air pump
12: Cooling equipment

 145mm Belüftung schwanzloses elektrisches Seitendes kanal-12.5kpa Gebläse-Hochdruck-Luftstrom-56CFM 6

145mm Belüftung schwanzloses elektrisches Seitendes kanal-12.5kpa Gebläse-Hochdruck-Luftstrom-56CFM 7

Packing:

145mm Belüftung schwanzloses elektrisches Seitendes kanal-12.5kpa Gebläse-Hochdruck-Luftstrom-56CFM 8

Shipment:

145mm Belüftung schwanzloses elektrisches Seitendes kanal-12.5kpa Gebläse-Hochdruck-Luftstrom-56CFM 9



FAQ:

Can we connect this centrifugal air blower directly onto power source?

This blower fan is with BLDC motor inside and it needs a controller board to run.

What kind of power source shall we use to drive this blower fan?
Generally, our customers use 24vdc switching power supply or Li-on battery.

Do you also sell controller board for this blower fan?
Yes, we can supply adapted controller board for this blower fan.

How to change impeller speed if we use your controller board?
You can use 0~5v or PWM to change speed. Our standard controller board is also with a
potentiometer to change speed conveniently.

What is the MTTF of this centrifugal air blower?
MTTF of this centrifugal air blower is 20,000+ hours under 25 C degree.

Can we use this centrifugal air blower to suct water?
This blower fan can not be used to suck water. If you need to suck water, you can ask us to
choose proper item for this special working condition.

Can we use this centrifugal air blower to suck dust directly?
This blower fan can not be used to suck dust directly.If you need to suck dust, you can ask
us to choose proper item for this special working condition.

What can do if the working condition is dirty?
A filter is strongly recommended to assemble onto the the inlet of the blower fan

How to decrease the noise of the blower?
Many of our customers use foam, silicone to fill between blower fan and machine to insulate
the blower noise.
